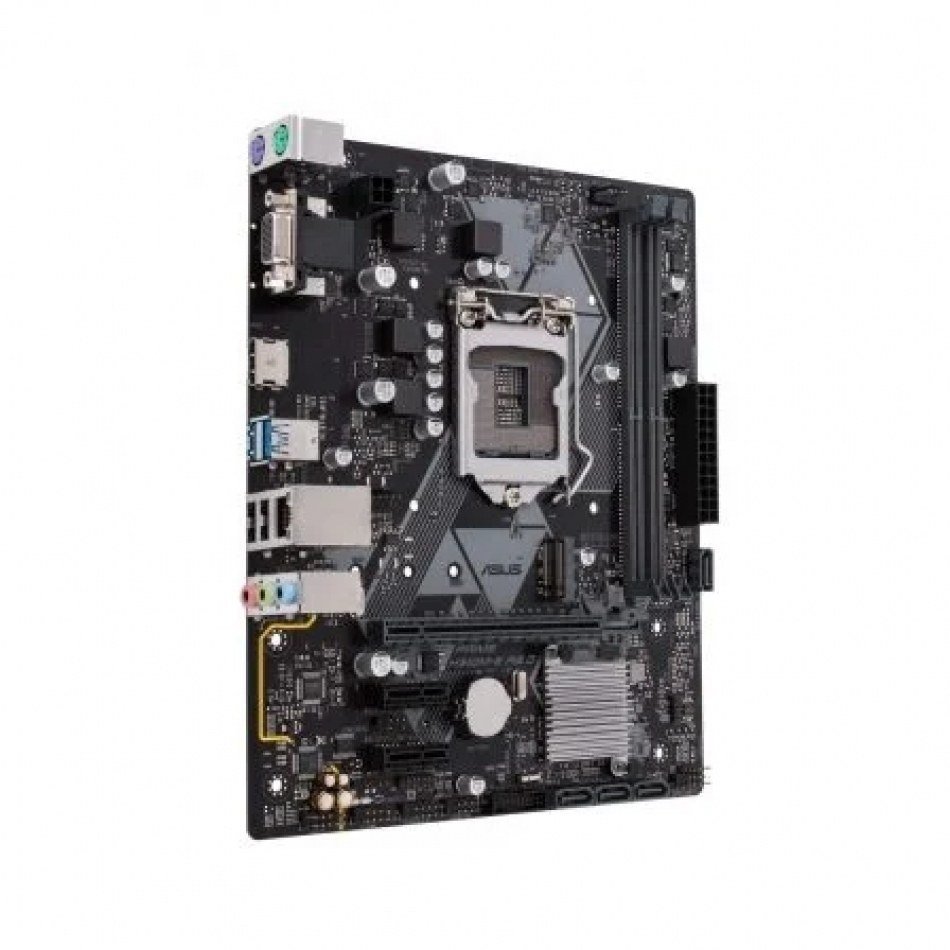

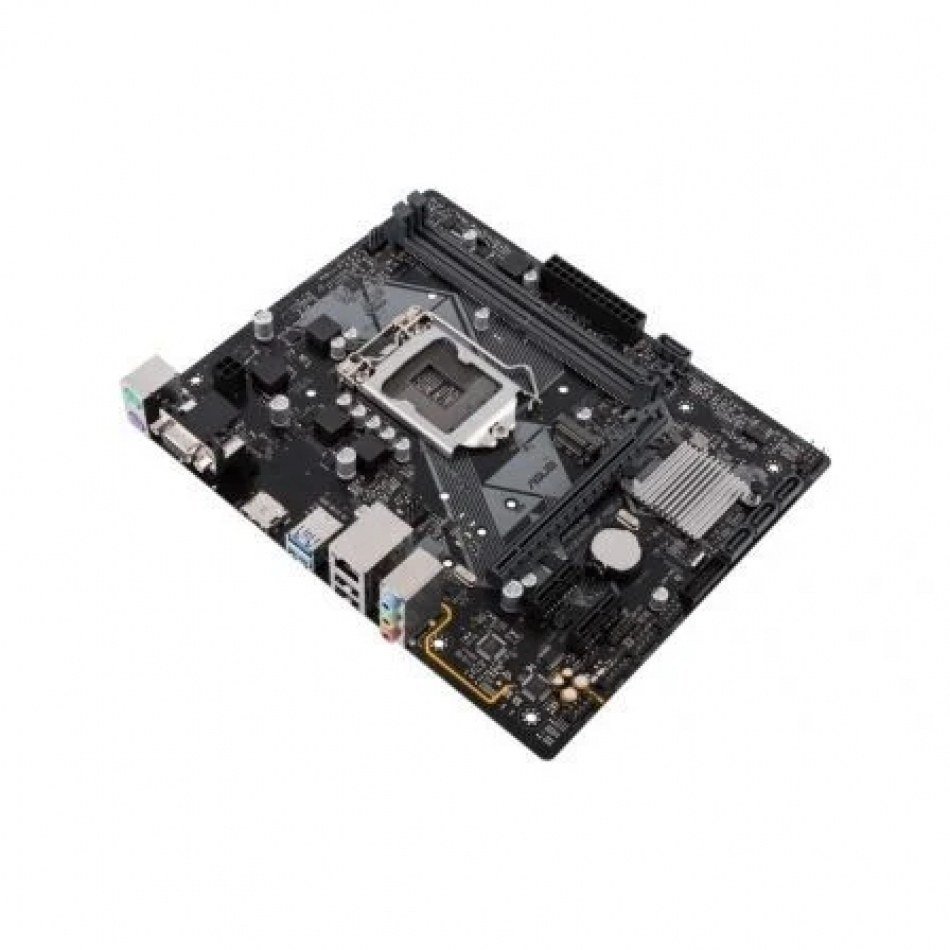

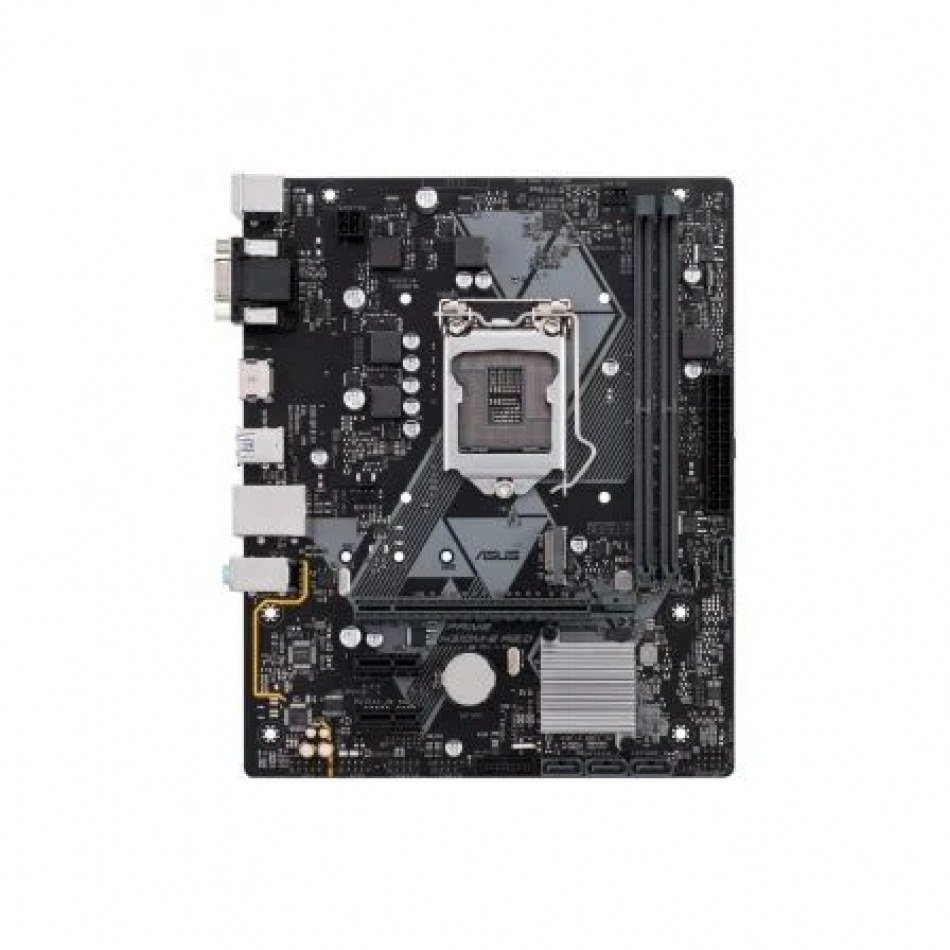

Placa Base Asus Prime H310M-E R2.0 Socket 1151/ Micro ATX

Fabricante:

ASUS

P/N:

Ean:

Código:

Éste producto lo tenemos descatalogado, sin embargo puedes ver otros productos similares.

Placa base asus prime h310m-e r2.0 socket 1151/ micro atx

CPU
Intel® Socket 1151 for 9th/8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Soporta Intel® 14 nm CPU
Soporta Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel® H310
Memoria
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Soporta Intel® Extreme Memory Profile (XMP)
Gráficos
Procesador gráfico integrado- soporta Intel® HD Graphics
Multi-VGA output support : HDMI/D-Sub ports
Soporta HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz
Soporta D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Soporta Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Slots de Expansión
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 2.0 x1
Almacenamiento
Intel® H310 Chipset :
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)*1
4 x SATA 6Gb/s port(s), gray,
LAN
Realtek® RTL8111H, 1 x Gigabit LAN
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
Soporta : Jack-detection, Front Panel Jack-retasking
Puertos USB
Intel® H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

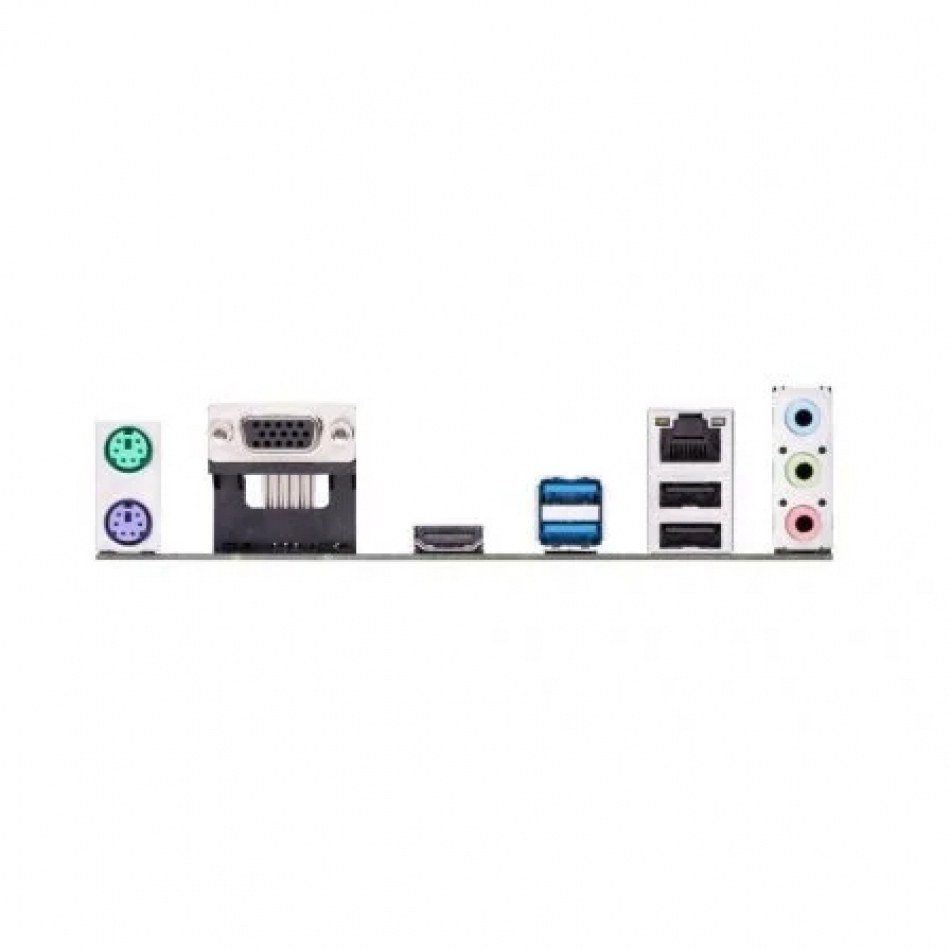

Puertos E/S Traseros
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
2 x USB 2.0
3 x Audio jack(s)
Puertos E/S Internos
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
1 x TPM header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector
Accesorios
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Anchor
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
Sistema Operativo
Windows® 10 64-bit
Factor de forma
Micro ATX Form Factor
22.6 cm x 18.5 cm
