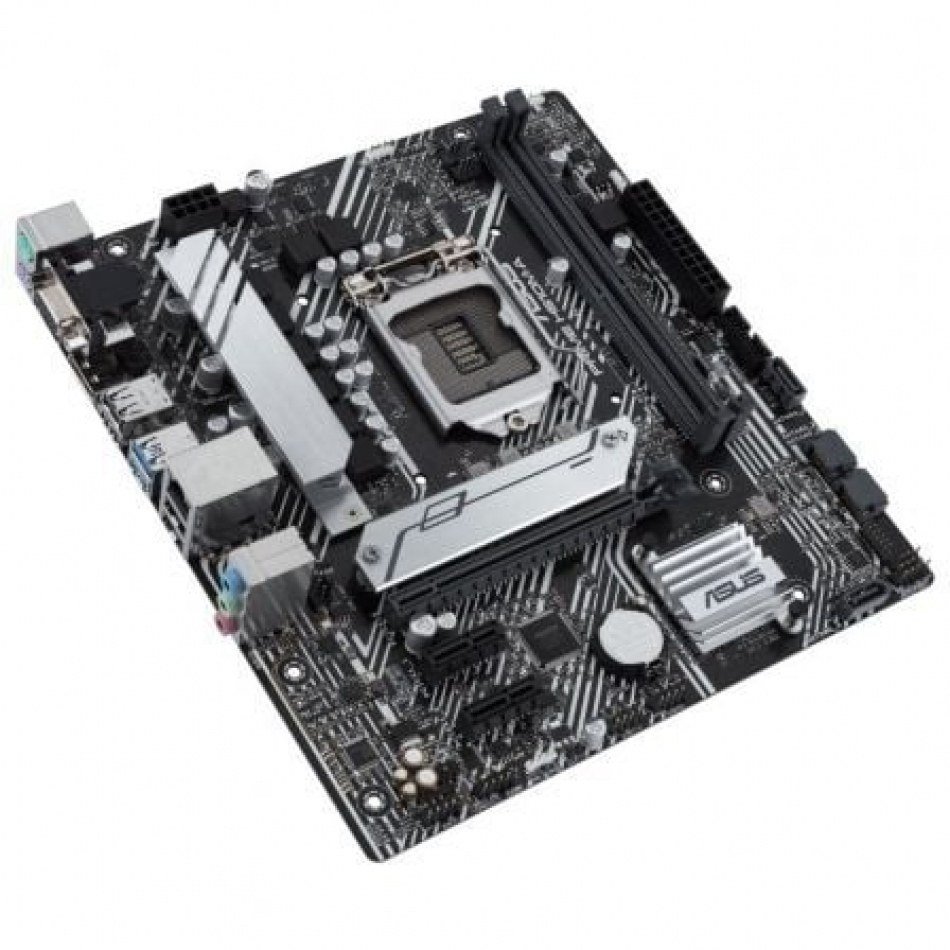

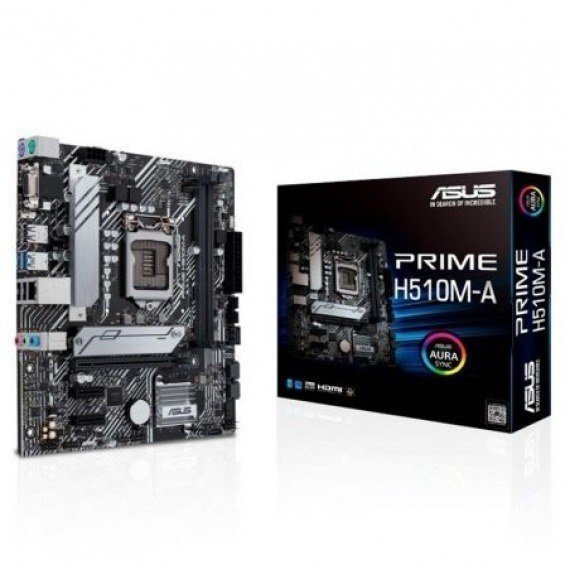

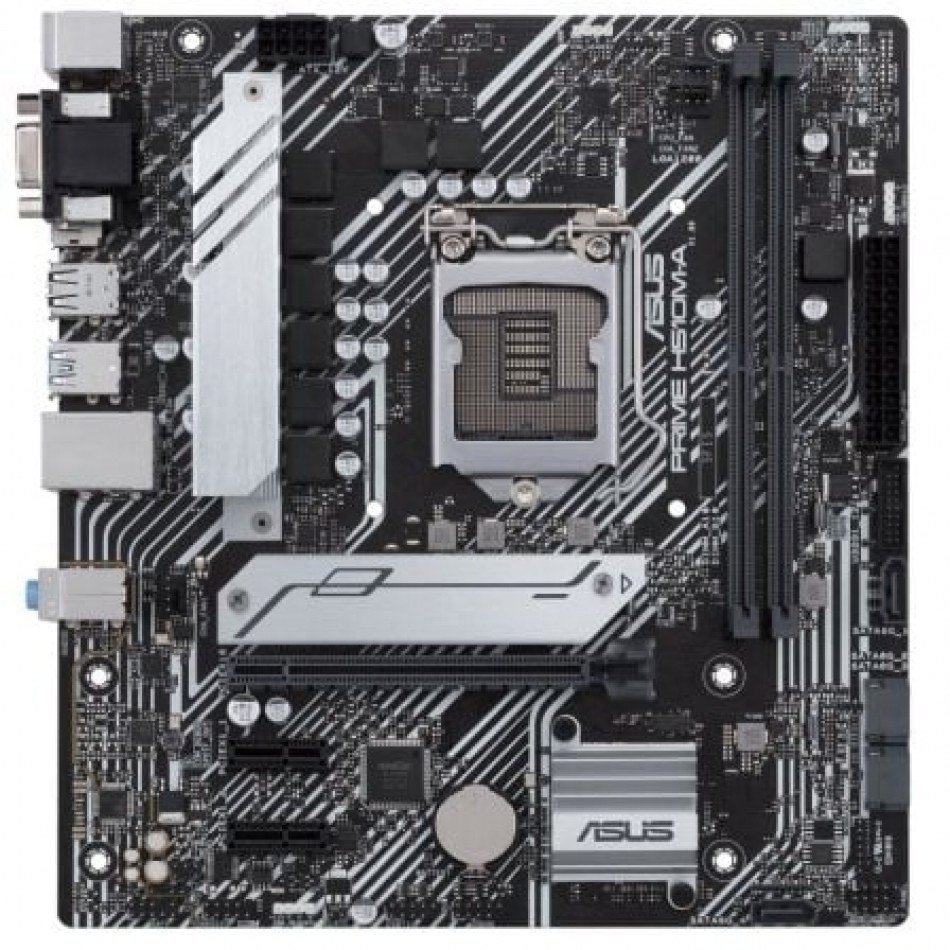

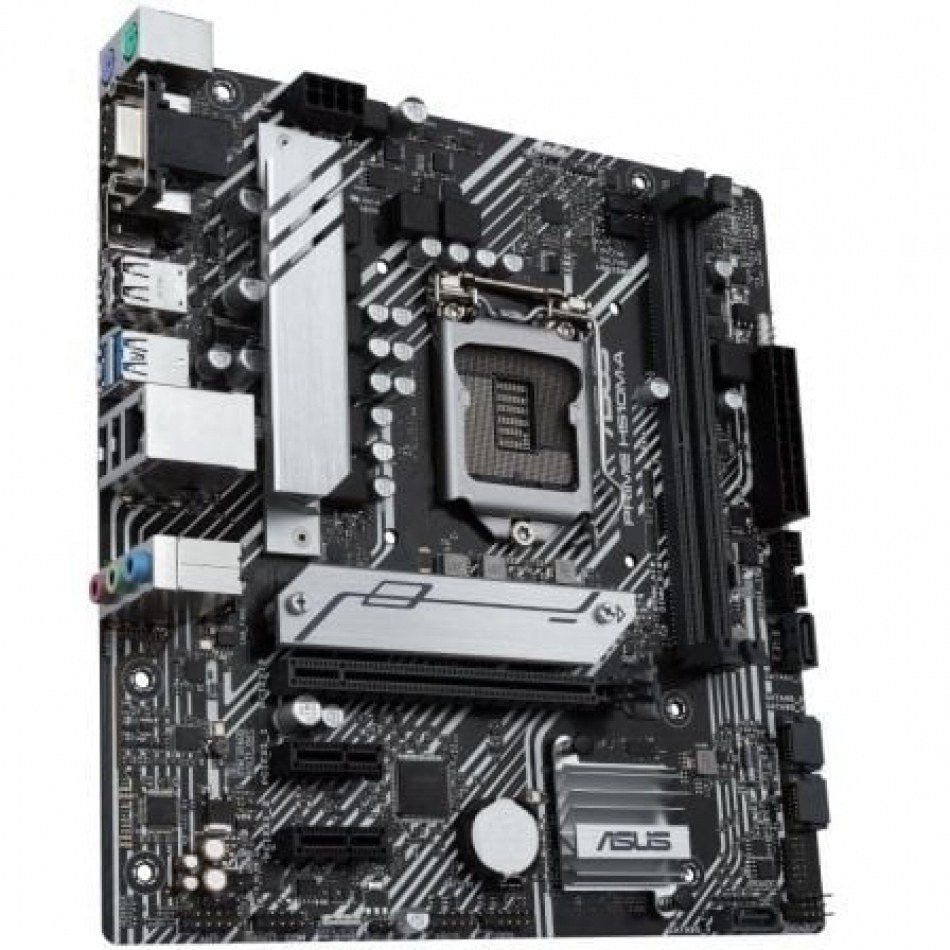

Placa Base Asus Prime H510M-A Socket 1200/ Micro ATX
Sku: 42952 PN: 90MB17C0-M0EAY0 EAN: 4711081128465
Placa base asus prime h510m-a socket 1200/ micro atx
Ver más Placas bases de ASUS
101,50 €
"
-
Especificaciones técnicas
- Procesador
- Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Supports Intel® 14 nm CPU
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- Chipset Intel® H510 Chipset
- Memoria
- 2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- Slots
- 1 x PCIe 4.0/3.0 x16 slot
- 2 x PCIe 3.0 x1 slots
- Gráficos
- 1 x DisplayPort 1.4
- 1 x D-Sub
- 1 x HDMI 2.0
- Almacenamiento
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
- Conectores USB
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Audio
- Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC
- Conectividad y redes
- 1 x Intel® I219-V 1Gb Ethernet

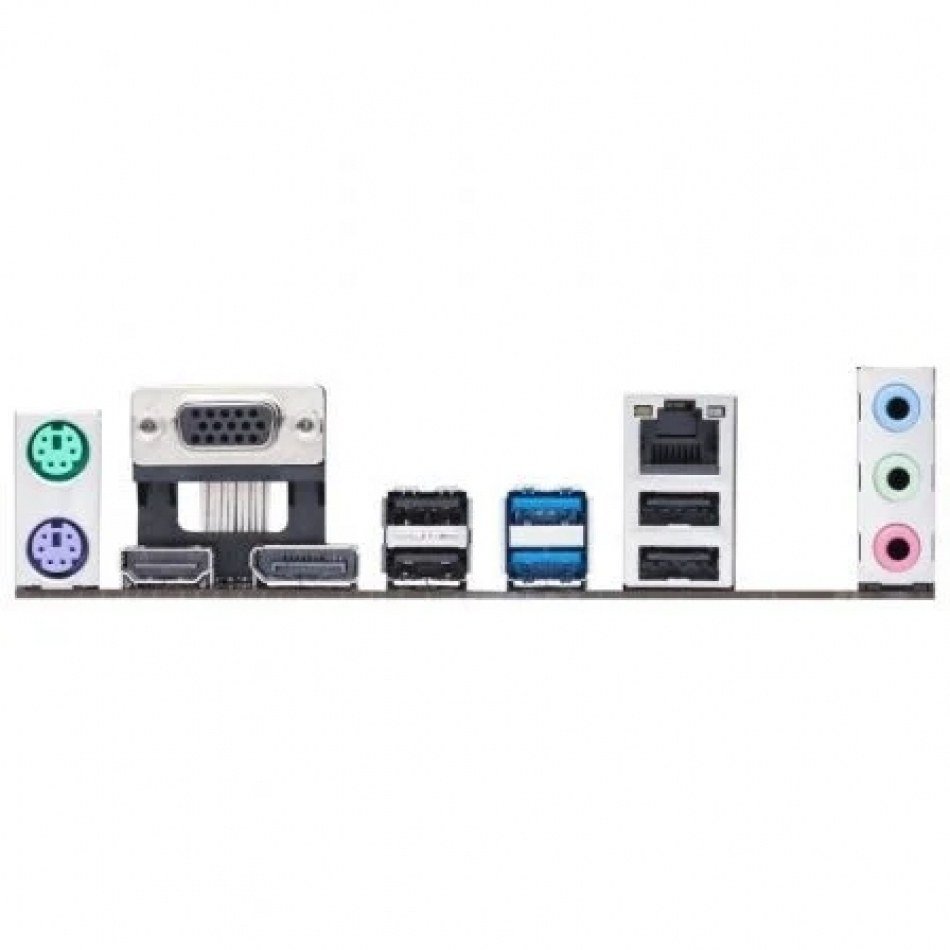

- Conectores internos
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x D-Sub port
- 1 x HDMI™ port
- 1 x Intel® I219-V 1Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard (purple) port
- 1 x PS/2 Mouse (green) port
- Conectores traseros
- 1 x 4-pin CPU Fan header
- 2 x 4-pin Chassis Fan headers
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- 2 x AURA Addressable Gen 2 headers
- 2 x AURA RGB headers
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
- Factor de forma: mATX (22,6 x 21.1 cm)
