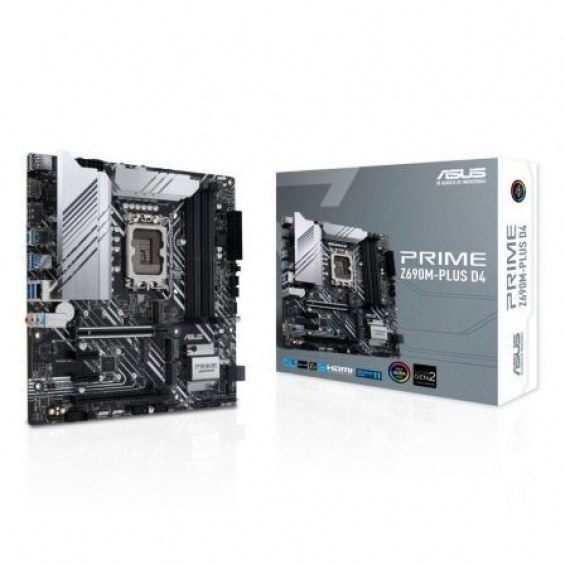

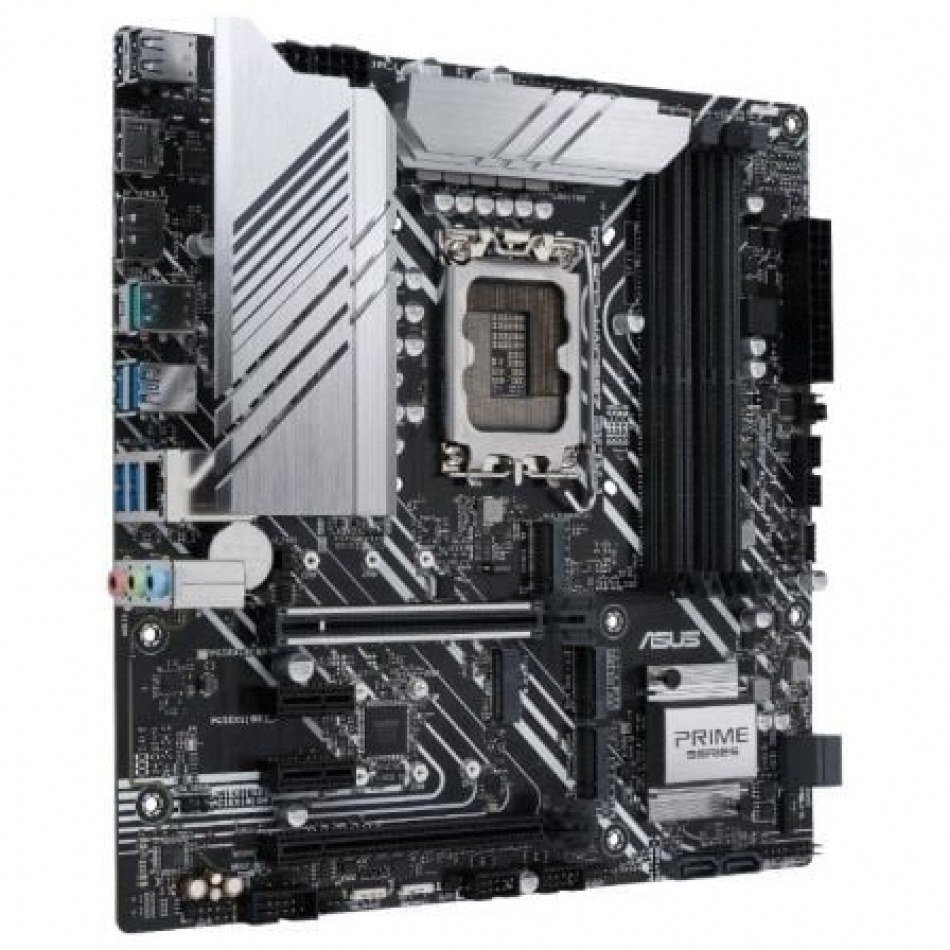

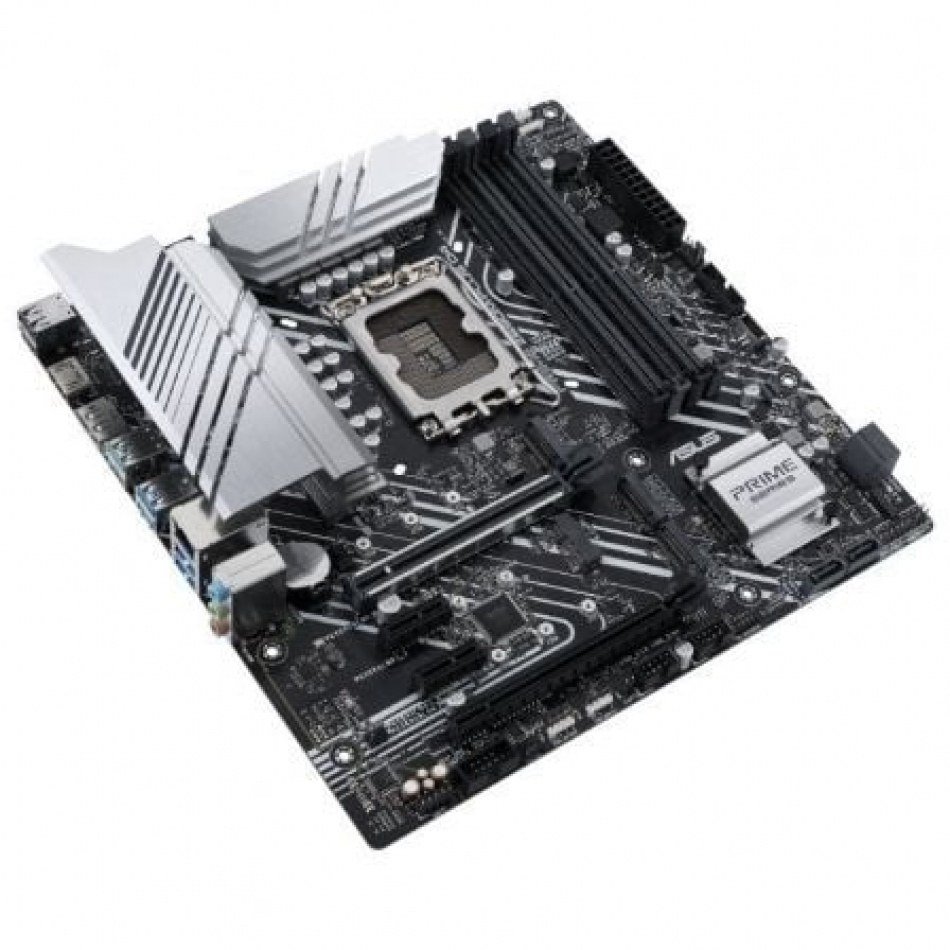

Placa Base Asus Prime Z690M-PLUS D4 Socket 1700/ Micro ATX

Sku: 42968   PN: 90MB18Q0-M0EAY0   EAN: 4711081466055
ASUS
Placa base asus prime z690m-plus d4 socket 1700/ micro atx
Stock: 0 unidades
245,00 €
Actualmente no tenemos disponible éste producto.


"

  • CPU

  • Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset

  • Z690
  • Memoria

  • 4 x DIMM, Max. 128GB, DDR4
  • 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • OptiMem II
  • *Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.
  • Gráficos

  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • **Support 4K@60Hz as specified in DisplayPort 1.4.
  • ***Support 4K@60Hz as specified in HDMI 2.1.
  • Expansion Slots

  • Intel® 12th Gen Processors*
  • 1 x PCIe 5.0/4.0/3.0 x16 slot
  • Intel® Z690 Chipset**
  • 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
  • 2 x PCIe 3.0 x1 slots
  • * Please check PCIe bifurcation table in support site.
  • ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
  • Almacenamiento

  • Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280
  • - Intel® 12th Gen processors support PCIe 4.0 x4 mode.
  • Intel® Z690 Chipset**
  • M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
  • ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
  • Ethernet

  • 1 x Intel® 1Gb Ethernet
  • Wireless & Bluetooth
  • M.2 slot only (Key E, CNVi & PCIe)
  • *Wi-Fi module is sold separately.
  • USB

  • Rear USB:Total 8 ports
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB:Total 7 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports*
  • * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
  • Audio

  • Realtek 7.1 Surround Sound High
  • Definition Audio CODEC*
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • - Audio Shielding
  • - Premium audio capacitors
  • - Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

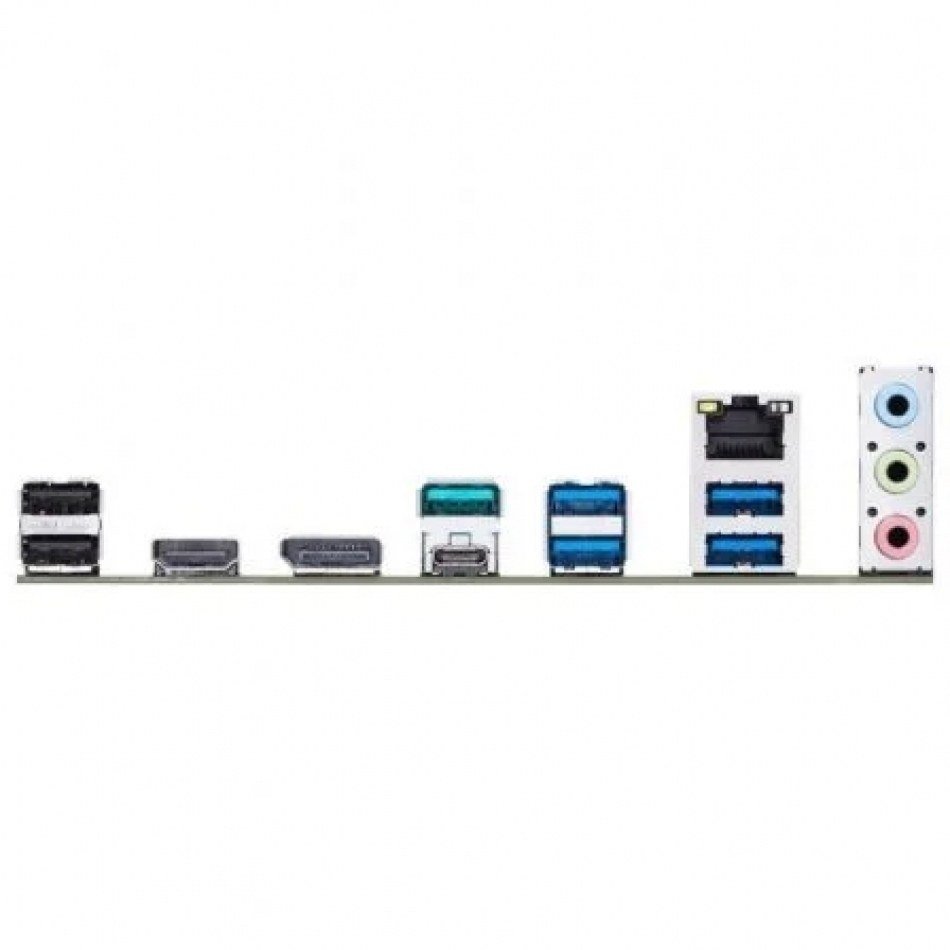

  • Puertos Panel Trasero I/O

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Intel® 1Gb Ethernet port
  • 3 x Audio jacks
  • Conectores internos I/O

  • Fan and cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous

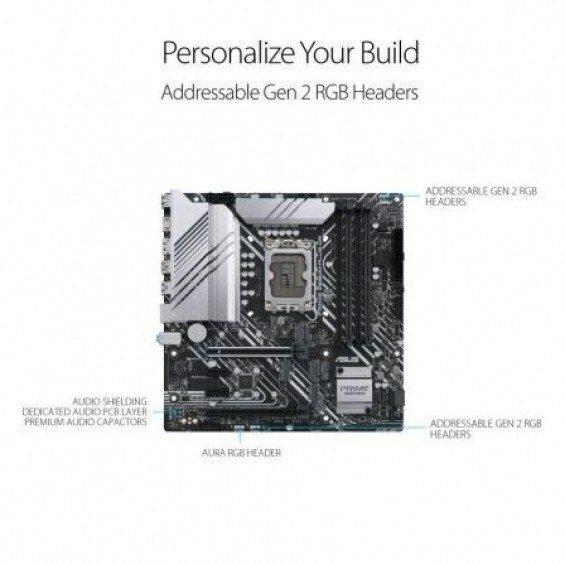

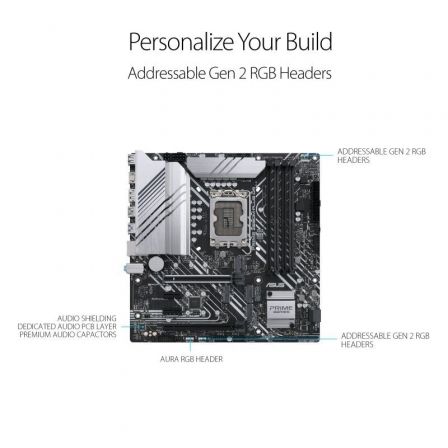

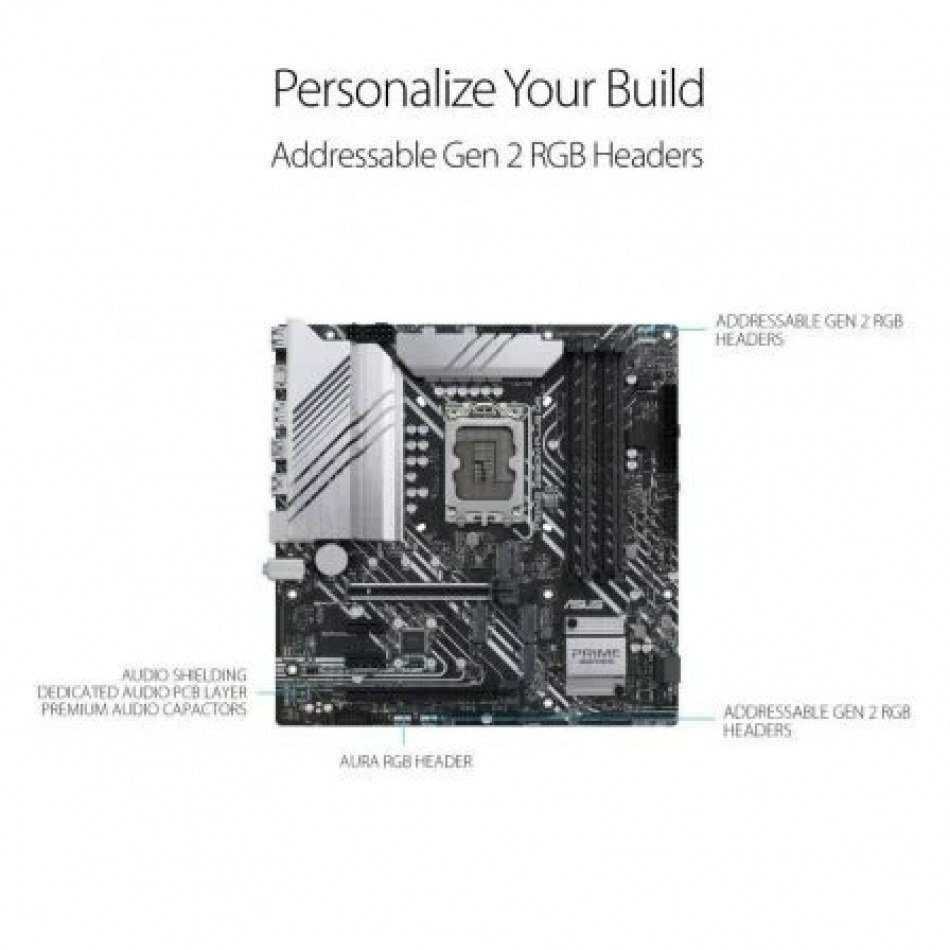

  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x M.2 slot (Key E)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt™ header
  • Características especiales

  • ASUS 5X PROTECTION III
  • - DIGI+ VRM (- Digital power design with DrMOS)
  • - LANGuard
  • - Overvoltage Protection
  • - SafeSlot
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - Q-DIMM
  • - Q-Slot
  • ASUS Thermal Solution
  • - VRM heatsink design
  • ASUS EZ DIY
  • - ProCool
  • AURA Sync
  • - AURA RGB header
  • - Addressable Gen 2 headers
  • Características Software

  • ASUS Exclusive Software
  • Armoury Crate
  • - AURA Sync
  • - Fan Xpert 4
  • AI Suite 3
  • -Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • ASUS CPU-Z
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
  • BIOS

  • 192 (128+64) Mb Flash ROM, UEFI AMI
  • BIOS
  • Manageability

  • WOL by PME, PXE
  • Accesorios

  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x I/O Shield
  • 2 x M.2 SSD screw packages
  • Installation Media
  • 1 x Support DVD
  • Documentation
  • 1 x User guide
  • Sistema Operativo

  • Windows® 11 64-bit, Windows® 10 64-bit
  • Factor de forma

  • microATX
  • 24.4cm x 24.4cm

"
