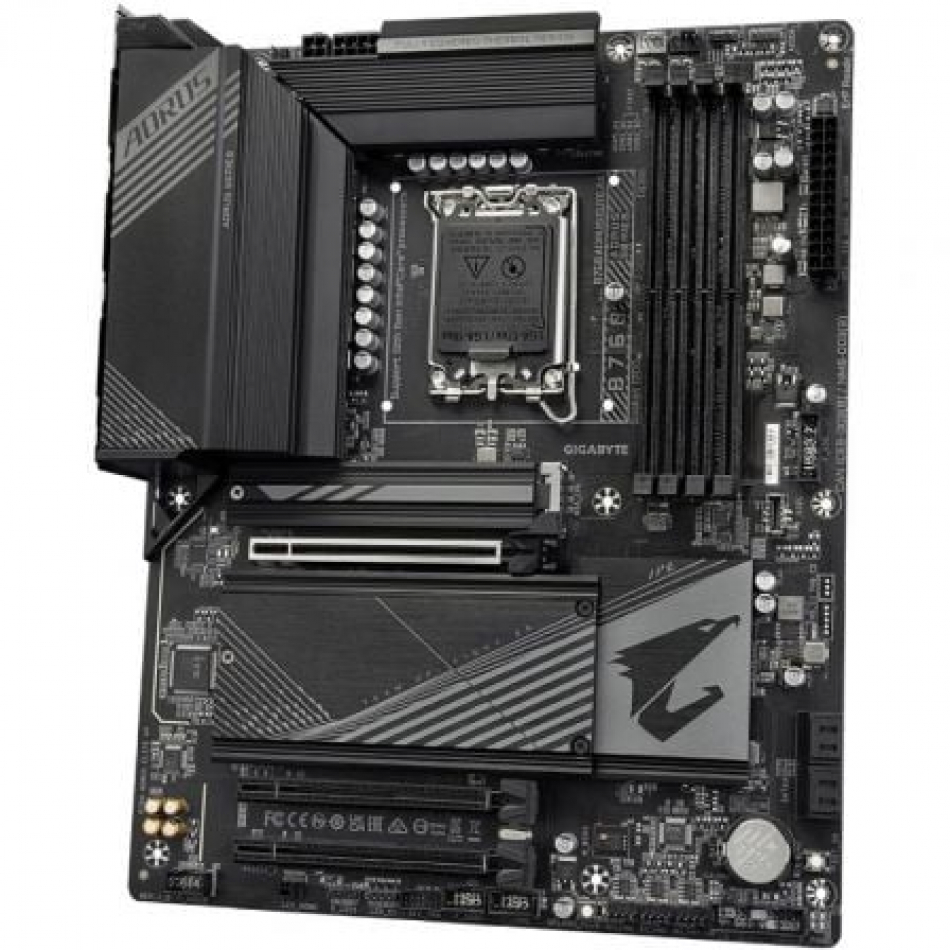

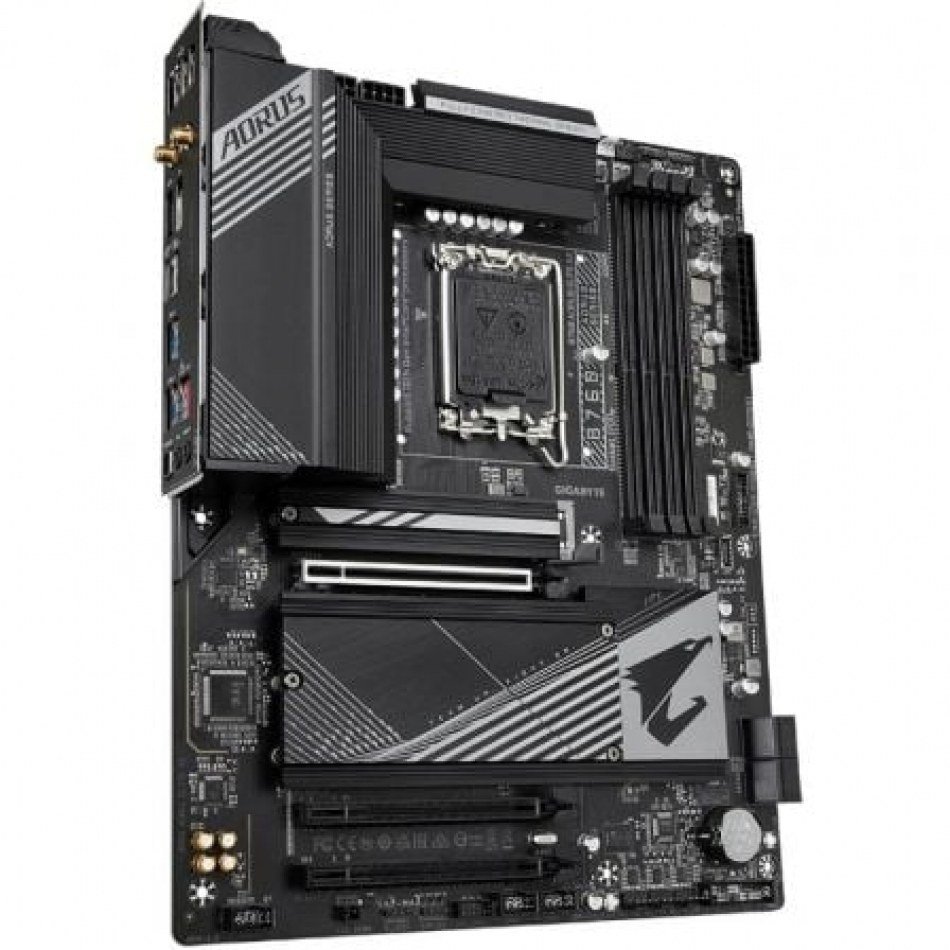

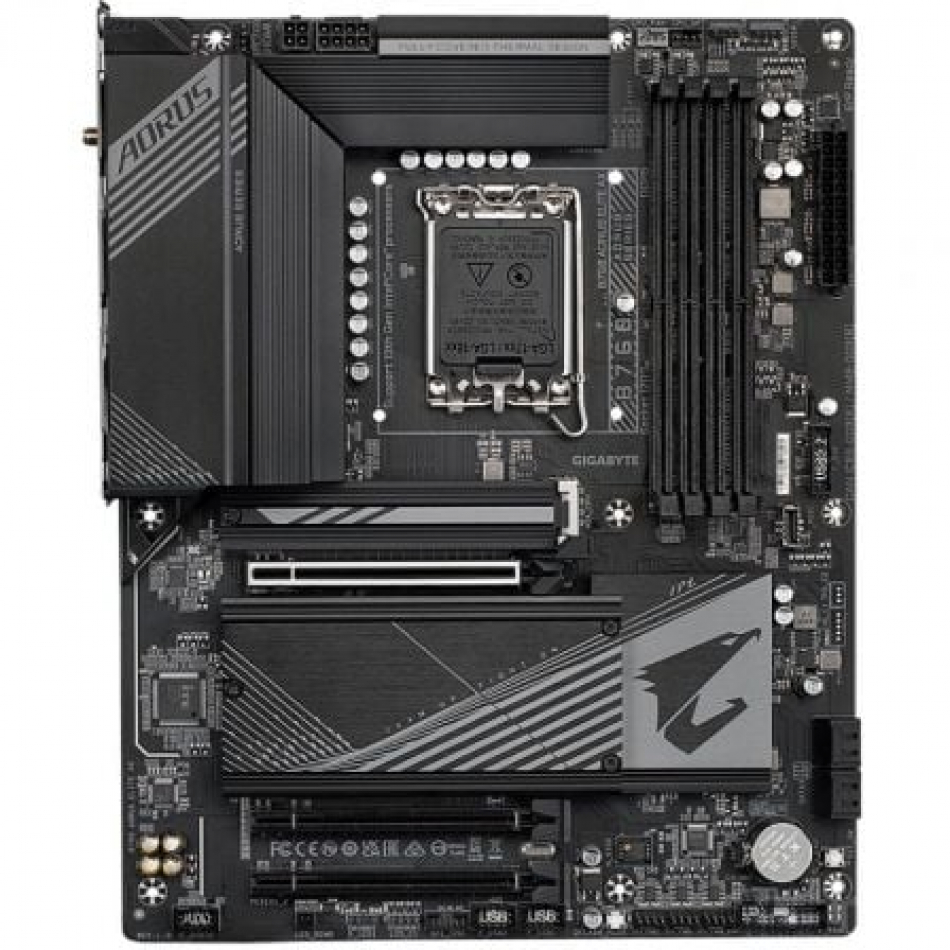

Placa Base Gigabyte B760 AORUS ELITE AX Socket 1700

• Intel® Socket LGA 1700: compatible con procesadores de las series 13.ª y 12.ª generación
• Rendimiento incomparable: solución VRM digital doble de 12*+1+1 fases
• DDR5 de doble canal: 4 * DIMM SMD con soporte para módulo de memoria XMP 3.0
• Almacenamiento de próxima generación: 3 * conectores PCIe 4.0 x4 M.2
• Diseño térmico avanzado y protección térmica M.2: para garantizar la estabilidad de energía de VRM y el rendimiento de SSD M.2
• EZ-Latch Plus: Conectores M.2 con liberación rápida y diseño sin tornillos
• Redes rápidas: LAN de 2,5 GbE y Wi-Fi 6E 802.11ax
• Conectividad extendida: USB-C® trasero y frontal de 10 Gb/s, DP, HDMI
• Smart Fan 6: cuenta con múltiples sensores de temperatura y cabezales de ventilador híbridos con FAN STOP
• Q-Flash Plus: actualice el BIOS sin instalar la CPU, la memoria y la tarjeta gráfica

RENDIMIENTO INCOMPARABLE

• Procesador
• LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
• L3 cache varies with CPU
• Chipset Intel® B760 Express Chipset
• Memoria
• Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Gráfica Integrada
• Integrated Graphics Processor-Intel® HD Graphics support:
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.0 version and HDCP 2.3.
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• * Support for DisplayPort 1.2 version and HDCP 2.3
• Audio
• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• Support for S/PDIF Out
• LAN
• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Módulo de comunicaciones inalámbricas
• Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
• Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
• Zócalos de Expansión
• CPU:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• Chipset:
• 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
• Interfaz de almacenamiento
• CPU:
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• Chipset:
• 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB
• Chipset:
• 2 x USB Type-C® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• Chipset+USB 3.2 Gen 1 Hub:
• 4 x USB 3.2 Gen 1 ports on the back panel
• Chipset+2 USB 2.0 Hubs:
• 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Conectores Internos E/S
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 3 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x reset button
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

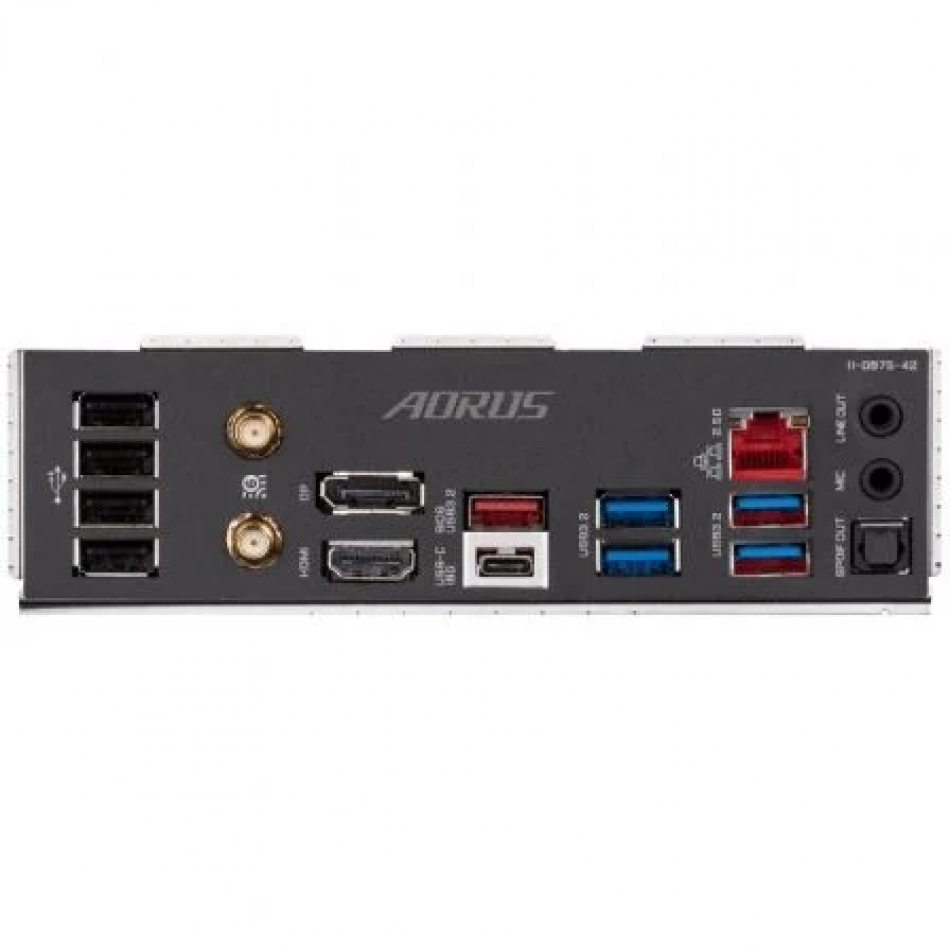

• Panel E/S Trasero
• 1 x USB Type-C® port, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 4 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 2 x SMA antenna connectors (2T2R)
• 1 x HDMI port
• 1 x DisplayPort
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks
• Controlador E/S
• iTE® I/O Controller Chip
• Monitorización Hardware
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• BIOS
• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Otras Características
• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Bundled Software
• Norton® Internet Security (OEM version)
• LAN bandwidth management software
• Sistema Operativo
• Support for Windows 11 64-bit
• Support for Windows 10 64-bit
• Formato
• ATX Form Factor; 30.5cm x 24.4cm
